Overview of Mud Agitators
The mud agitator is generally installed on the mud storage tank and is used to for the mixing and agitation of drilling fluid and stir the mud to suspend the solid phase particles. The mud agitator makes the circulating drilling fluid stable and evenly mixed. The mud agitator can prevent the solid particles of the drilling fluid from settling in the tank circulation system.
A drilling rig solids control system consists of multiple sets of mud tanks, and dozens of mud agitators need to work together to complete the reciprocating circulation of drilling fluid in the entire drilling project. So the mud mixer plays an important role in the drilling rig solids control system.

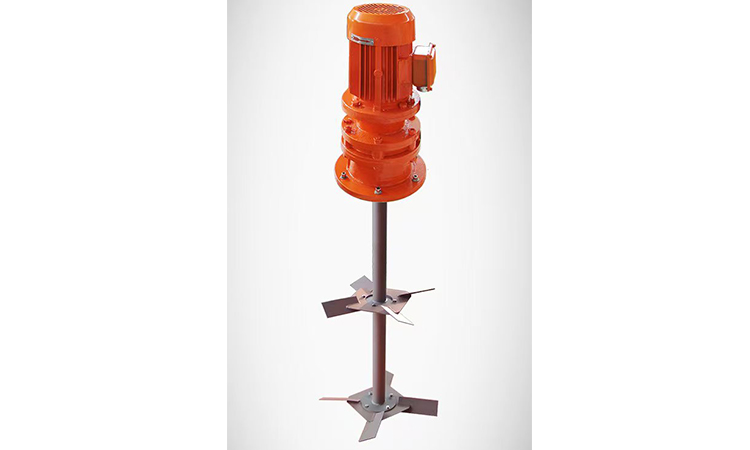

Mud Agitator is less than 5.5 kW drilling mud Agitator. It adopts the blender cycloid speed reducer. Mud Agitator is applied to the drug liquids mixing tank. This mud agitator has the advantage of compact structure and it occupies small area.
Sino Mechanical can design and produce different types of solid control equipment such as mud mixers and supporting mud tanks that can be used for oilfield drilling.
Features of Mud Agitators
1. Speed reducer combined with explosion-proof motor, which is easy maintenance and suitable for using in wild harsh working conditions.
2. Compact design. Quiet, smooth, vibration free.
3. Customers can choose single layer or double layers impellers according to site conditions. Agitator shaft centering guide can be added according to the increase of tank depth.
4. Durable, single reduction worm gear drive.

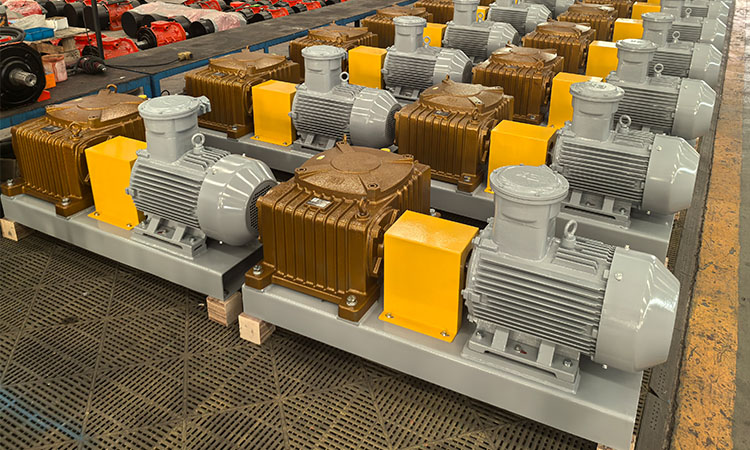

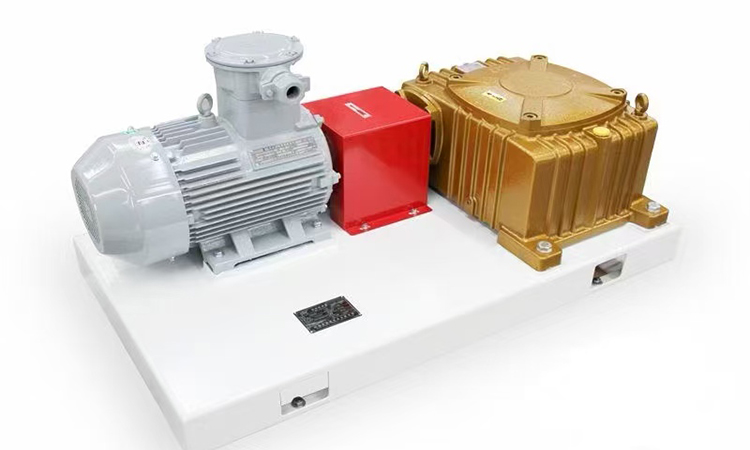

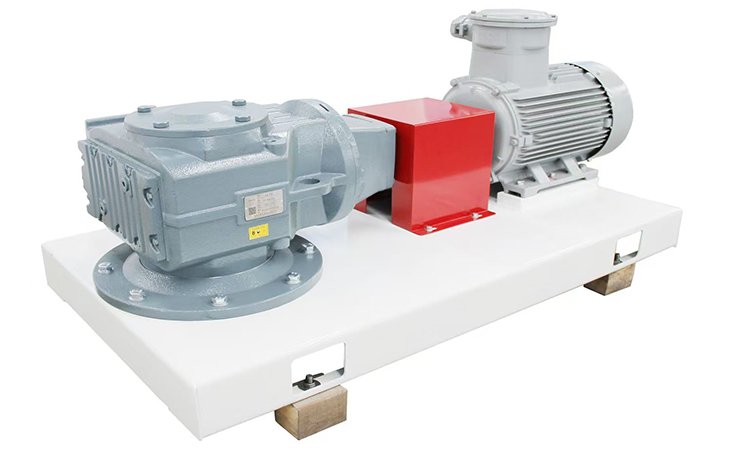

5. The motor is placed horizontally, convenient for installing, adjusting and replacing.
6. Fewer moving parts, less maintenance.
7. Compact design without coupling, IEC top brand gear box.
8. Adopt worm wheel and worm gear reducer drive, which have the advantages of large transmitted torque, smooth operation, reliable performance,etc.
9. C-Face Explosion proof electrical motor direct connection with gear box. Optional ATEX, IEC and marine explosion-proof certified motors according to customers' requirements.
Applications of Mud Agitators
The function of the mud agitator in the mud mixing tank is to ensure that the mud in the mud tank is stirred evenly.
The core function of the mud agitator is to mix the mud so that the drilling cuttings and silt do not deposit on the bottom of the tank in the mud tank. It can pass through the purification system smoothly. The uniform stirring of the mud mixer will suspend the solid phase particles and prevent sedimentation. Harmful mud solids must be removed, so they must be suspended, and then use desanders, desilters, and centrifuge solid control equipment to complete the removal of harmful mud solids. The useful mud solid phase also requires a mud agitator to stir and suspend it evenly, so as to keep the density and other properties of the mud stable and complete. Therefore, it can be seen that the mud mixing effect of the non-excavation mud mixing tank depends on the uniform mixing and continuous and reliable mixing work of the mud agitator, so as to avoid the phenomenon of precipitation and sticking of solid phase substances to the wall.
When the depth of the mud tank is less than 12 meters, either straight turbine blades or curved turbine blades can be used. If it is a mud tank with a shallow depth, the impeller is installed at the lower part of the shaft, and the stirring work can also be fully performed. If the depth of the mud tank is very deep, the mud agitator can also be equipped with double impellers on one shaft during its stirring operation, so that the effect of uniform mixing can be achieved. As for the length design of the stirring rod of the mud mixer, it is necessary to determine the length design range according to the actual mud tank depth.
Price of Mud Agitators
The Mud Agitators Price will change randomly with factors such as production cost, transportation cost, international situation, exchange rate, market supply and demand of raw materials. Sino Mechanical aims to provide you with high quality and best price Mud Agitators. If you are looking for Mud Agitators, please kindly contact us to get the latest Mud Agitators price.
Mud Agitators Supplier
Sino Mechanical, as a Mud Agitators manufacturer, has more than 20 years extensive experiences in the performance, application and cost-effective manufacturing of Mud Agitators. We are global Mud Agitators supplier. We offer a wide range of drilling equipment and have Mud Agitators for sale. We also provide OEM services. We design, manufacture, and sell Mud Agitators for your drilling applications. If you want to know latest Mud Agitators price, don’t hesitate to contact us anytime. We will get back to you within 24 hours.
Technical Specifications of Mud Agitators
